Directions to Solve

49.

Mechanical impedance is the ratio of

A.	rms force to rms velocity
B.	rms force to rms displacement
C.	rms velocity to rms displacement
D.	none of the above

Answer: Option A

Explanation:

In force voltage analogy force is analogous to voltage and velocity to current. Just as 40-2 force/velocity = mechanical impedance.

50.

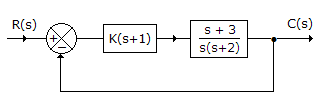

For the system in the given figure the characteristic equation is

16-87

Answer: Option A

Explanation:

Transfer function = 41-87

Hence characteristic equation is 41-87-1
