KOP: Impulse and Momentum - General Questions (2)

A 0.6-kg brick is thrown into a 25-kg wagon which is initially at rest. If, upon entering, the brick has a velocity of 10 m/s as shown, determine the final velocity of the wagon.

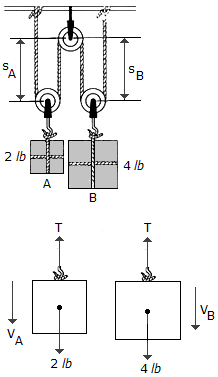

Determine the velocities of blocks A and B 2 s after they are released from rest. Neglect the mass of the pulleys and cables.

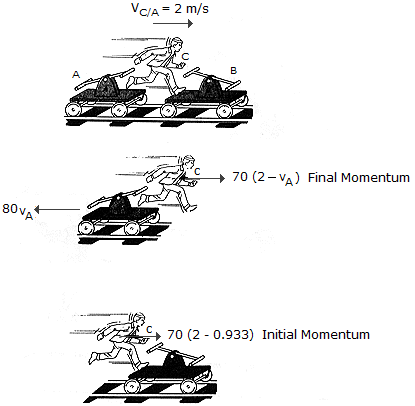

The two handcars A and B each have a mass of 80 kg. Both cars are initially at rest. Both cars start from rest before the man jumps. If the man C has a mass of 70 kg and jumps from A with a horizontal relative velocity of v_C/A = 2 m/s and lands on B, determine the velocity of each car after the jump. Neglect the effects of rolling resistance.

The projectile having a mass of m = 3 kg is fired from a cannon with a muzzle velocity of v_O = 500 m/s. Determine the projectile's angular momentum about point O at the instant it is at the maximum height of its trajectory.

A toboggan and rider, having a total mass of 150 kg, enter horizontally tangent to a 90° circular curve with a velocity V_A and the angle  of "descent," measured from the horizontal in a vertical x — z plane, at which the toboggan exits at B. Neglect friction in the calculation. The radius r_B equals 57 m.

A stunt driver in car A travels in free flight off the edge of a ramp at C. At the point of maximum height he strikes car B. If the direct collision is perfectly plastic (e = 0), determine the required ramp speed v_C at the end of the ramp C, and the approximate distance s where both cars strike the ground. Each car has a mass of 3.5 Mg. Neglect the size of the cars in the calculation.

The motor M pulls on the cables with a force F that has a magnitude which varies as shown on the graph. If the 15-kg crate is originally resting on the floor such that the cable tension is zero when the motor is turned on, determine the speed of the crate when t = 6s.

Two coins A and B have the initial velocities shown just before they collide at point O. If they have weights of W_A = 13.2(10^-3) lb and W_B = 6.6(10^-3) lb and the surface upon which they slide is smooth, determine their speed just after impact. The coefficient of restitution is e = 0.65.
