KOP: Impulse and Momentum - General Questions

A boy, having a weight of 90 lb, jumps off a wagon with a relative velocity of v_b/w = 6 ft/s. If the angle of jump is 30°, determine the horizontal velocity (v_w)₂ of the wagon just after the jump. Originally both the wagon and the boy are at rest. Also, compute the total average impulsive force that all four wheels of the wagon exert on the ground of the boy jumps off in t = 0.8s. The wagon has a weight of 20 lb.

The two blocks A and B each have a mass of 500 g. The blocks are fixed to the horizontal rods and their initial velocity is 2 m/s in the direction shown. If a couple moment of M = 0.8 N • m is applied about CD of the frame, determine the speed of the block in 4 s. The mass of the supporting frame is negligible and its free to rotate about CD.

A rifle has a mass of 2.5 kg. If it is loosely gripped and a 1.5-g bullet is fired from it with a muzzle velocity of 1400 m/s, determine the recoil velocity of the rifle just after firing.

A hockey puck is traveling to the left with a velocity of v₁ = 10 m/s when it is struck by a hockey stick and given a velocity of v₂ = 20 m/s as shown. Determine the magnitude of the net impulse exerted by the hockey stick on the puck. The puck has a mass of 0.2 kg.

A girl having a weight of 40 lb slides down the smooth slide onto the surface of a 20-lb wagon. Determine the speed of the wagon at the instant the girl stops sliding on it. If someone ties the wagon to the slide at B, determine the horizontal impulse the girl will exert at C in order to stop her motion. Neglect friction and assume that the girl starts from rest at the top of the slide, A.

Plates A and B each have a mass of 4 kg and are restricted to move along the frictionless guides. If the coefficient of restitution between the plates is e = 0.7, determine (a) the speed of both plates just after collision and (b) the maximum deflection of the spring. Plate A has a velocity of 4 m/s just before striking B. Plate B is originally at rest.

A man wearing ice skates throws an 8-kg block with an initial velocity of 2 m/s, measured relative to himself, in the direction shown. If he is originally at rest and completes the throw in 1.5 s while keeping his legs rigid, determine the horizontal velocity of the man just after releasing the block. What is the average vertical reaction of both his skates on the ice during the throw? The man has a mass of 70 kg. Neglect friction and the motion of his arms.

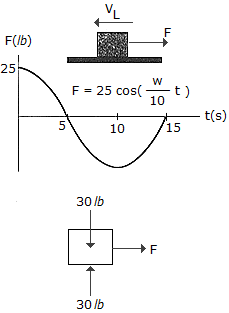

A 30-lb block is initially moving along a smooth horizontal surface with a speed of v₁ = 6 ft/s to the left. If it is acted upon by a force F, which varies in the manner shown, determine the velocity of the block in 15 s. The argument for the cosine is in radians.
