Field-Effect Transistors - General Questions (3)

Directions to Solve

Field-Effect Transistors - General Questions

17.

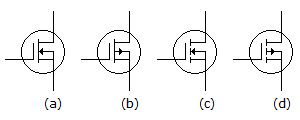

Identify the p-channel D-MOSFET.

mcq7_1007_1
A. a
B. b
C. c
D. d

Answer: Option B

Explanation:

No answer description available for this question

View Answer Discuss Workspace Report
18.

The JFET is always operated with the gate-source pn junction ________ -biased.
A. forward
B. reverse

Answer: Option B

Explanation:

No answer description available for this question.

View Answer Discuss Workspace Report
19.

The value of VGS that makes ID approximately zero is the
A. pinch-off voltage.
B. cutoff voltage.
C. breakdown voltage.
D. ohmic voltage.

Answer: Option B

Explanation:

No answer description available for this question.

View Answer Discuss Workspace Report
20.

Which of the following devices has the highest input resistance?
A. diode
B. JFET
C. MOSFET
D. bipolar junction transistor

Answer: Option C

Explanation:

No answer description available for this question

View Answer Discuss Workspace Report
21.

Refer to figure given below. Determine the value of VGS.

mcq7_1018_1 (2)
A. –20 V
B. –8 V
C. –6 V
D. –2 V

Answer: Option C

Explanation:

No answer description available for this question

View Answer Discuss Workspace Report
22.

Refer to the given figure. ID = 6 mA. Calculate the value of VDS.

mcq7_1013_1a
A. –6 V
B. 6 V
C. 12 V
D. –3 V

Answer: Option B

Explanation:

No answer description available for this question.

View Answer Discuss Workspace Report
23.

On the drain characteristic curve of a JFET for VGS = 0, the pinch-off voltage is
A. below the ohmic area.
B. between the ohmic area and the constant current area.
C. between the constant current area and the breakdown region.
D. above the breakdown region.

Answer: Option B

Explanation:

No answer description available for this question

View Answer Discuss Workspace Report
24.

What type(s) of gate-to-source voltage(s) can a depletion MOSFET (D-MOSFET) operate with?
A. zero
B. positive
C. negative
D. any of the above

Answer: Option D

Explanation:

No answer description available for this question.

View Answer Discuss Workspace Report
