FET Devices - General Questions (3)

Directions to Solve

FET Devices - General Questions

17.

Refer to the following curves. Calculate ID at VGS = 1 V.

mcq06_02700

mcq06_02700 (1)
A. 8.167 mA
B. 4.167 mA
C. 6.167 mA
D. 0.616 mA

Answer: Option B

Explanation:

No answer description available for this question.
View Answer Discuss Workspace Report
18.

The region to the left of the pinch-off locus is referred to as the ________ region.
A. saturation
B. cutoff
C. ohmic
D. All of the above

Answer: Option C

Explanation:

No answer description available for this question.
View Answer Discuss Workspace Report
19.

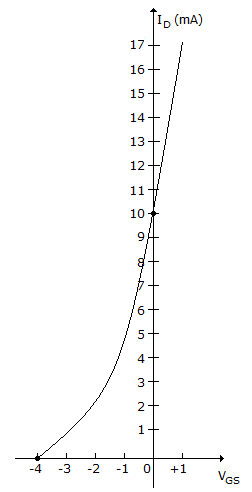

Referring to the following transfer curve, determine the level of VGS when the drain current is 20 mA.

mcq06_02600
A. 1.66 V
B. –1.66 V
C. 0.66 V
D. –0.66 V

Answer: Option A

Explanation:

No answer description available for this question.

View Answer Discuss Workspace Report
20.

What is the purpose of adding two Zener diodes to the MOSFET in this figure?

mcq06_03200
A. To reduce the input impedance
B. To protect the MOSFET for both polarities
C. To increase the input impedance
D. None of the above

Answer: Option B

Explanation:

No answer description available for this question.
View Answer Discuss Workspace Report
21.

The transfer curve is not defined by Shockley's equation for the ________.
A. JFET
B. depletion-type MOSFET
C. enhancement-type MOSFET
D. BJT

Answer: Option C

Explanation:

No answer description available for this question.

View Answer Discuss Workspace Report
22.

The drain current will always be one-fourth of IDSS as long as the gate-to-source voltage is ________ the pinch-off value.
A. one-fourth
B. one-half
C. three-fourths
D. None of the above

Answer: Option B

Explanation:

No answer description available for this question.
View Answer Discuss Workspace Report
23.

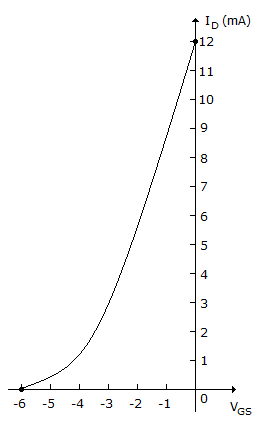

Referring to this transfer curve. Calculate (using Shockley's equation) VGS at ID = 4mA.

mcq06_01700


A. 2.54 V
B. –2.54 V
C. –12 V
D. Undefined

Answer: Option B

Explanation:

No answer description available for this question.
View Answer Discuss Workspace Report
24.

The BJT is a ________ device. The FET is a ________ device.
A. bipolar, bipolar
B. bipolar, unipolar
C. unipolar, bipolar
D. unipolar, unipolar

Answer: Option B

Explanation:

No answer description available for this question.
View Answer Discuss Workspace Report
