Directions to Solve

Theory of machines - Section 1

17.

Whitworth quick return motion mechanism consists of three turning pairs and one sliding pair.

A. Right
B. Wrong

Answer: Option A

Explanation:

No answer description available for this question.

View Answer Discuss Workspace Report

18.

The frequency of damped vibrations with viscous damping is __________ the frequency of undamped vibrations.

A. more than
B. less than
C. same as

Answer: Option B

Explanation:

No answer description available for this question.

View Answer Discuss Workspace Report

19.

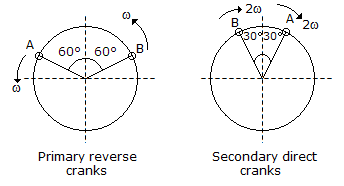

For a twin cylinder V-engine, the crank positions for primary reverse cranks and secondary direct cranks are shown in the below figure. The engine is a

512-448-1

A. 30° V-engine
B. 60° V-engine
C. 120° V-engine
D. 150° V-engine

Answer: Option A

Explanation:

No answer description available for this question.

View Answer Discuss Workspace Report

20.

The gears are termed as medium velocity gears, if their peripheral velocity is

A. 1 - 3 m/s
B. 3 - 15 m/s
C. 15 - 30 m/s
D. 30 - 50 m/s

Answer: Option B

Explanation:

No answer description available for this question.

View Answer Discuss Workspace Report

21.

When the crank is at the inner dead centre, in a reciprocating steam engine, then the velocity of the piston will be

A. minimum
B. zero
C. maximum
D. none of these

Answer: Option B

Explanation:

No answer description available for this question.

View Answer Discuss Workspace Report

22.

The radial distance of a tooth from the pitch circle to the bottom of the tooth is called

A. dedendum
B. addendum
C. clearance
D. working depth

Answer: Option A

Explanation:

No answer description available for this question.

View Answer Discuss Workspace Report

23.

The tractive force in a locomotive with two cylinders is given by (where c = Fraction of reciprocating parts per cylinder, m = Mass of reciprocating parts, ω = Angular speed of crank, r = Radius of crank, and θ = Angle of inclination of crank to the line of stroke)

A. m.ω2.r cos θ
B. c.m.ω2.r sin θ
C. (1 - c)m.ω2.r(cos θ - sin θ)
D. m.ω2.r(cos θ - sin θ)

Answer: Option C

Explanation:

No answer description available for this question.

View Answer Discuss Workspace Report

24.

The steering of a ship means

A. movement of a complete ship up and down in vertical plane about transverse axis
B. turning of a complete ship in a curve towards right or left, while it moves forward
C. rolling of a complete ship side-ways
D. none of the above

Answer: Option B

Explanation:

No answer description available for this question.

View Answer Discuss Workspace Report
