Kinematics of Particle (KOP) - General Questions (4)

A car, initially at rest, moves along a straight road with constant acceleration such that it attains a velocity of 60 ft/s when s = 150 ft. Then after being subjected to another constant acceleration, it attains a final velocity of 100 ft/s when s = 325 ft. Determine the average velocity and average acceleration of the car for the entire 325-ft displacement.

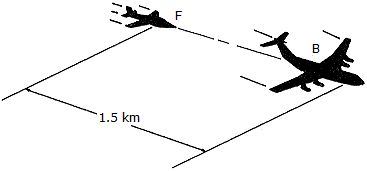

The pilot of flighter plane F is following 1.5 km behind the pilot of bomber B. Both planes are originally traveling at 120 m/s. In an effort to pass the bomber, the pilot in F gives his plane a constant acceleration of 12 m/s². Determine the speed at which the pilot in the bomber sees the pilot of the fighter plane pass at the start of the passing operation the bomber is decelerating at 3 m/s². Neglect the effect of any turning.

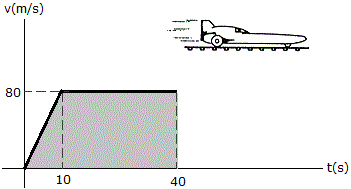

From experimental data, the motion of a jet plane while traveling along a runway is defined by the v-t graph shown. Find the position s and the acceleration a when t = 40 s.

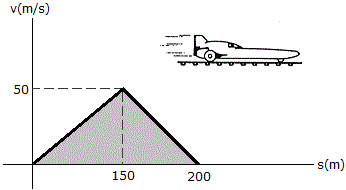

The v-s graph for a rocket sled is shown. Determine the acceleration of the sled when s = 100 m and s = 175 m.

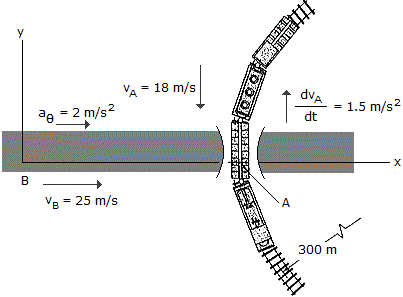

A passenger in the automobile B observes the motion of the train car <a< i="">. At the instant shown, the train has a speed of 18 m/s and is reducing its speed at a rate of 1.5 m/s². The automobile is accelerating at 2 m/s² and has a speed of 25 m/s. Determine the velocity and acceleration of A with respect to B. The train is moving along a curve of radius <i.r< i="">= 300 m.</i.r<></a<>

A package is dropped from the plane which is flying with a constant horizontal velocity of v_A = 150 ft/s at a height h = 1500 ft. Determine the radius of curvature of the path of the package just after it is released from plane at A.

If the hoist H is moving upward at 6 ft/s, determine the speed at which the motor M must draw in the supporting cable.

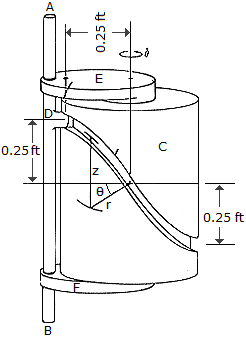

The cylindrical cam C is held fixed while the rod AB and bearings E and F rotate about the vertical axis of the cam at a constant rate of  = 4 rad/s. If the rod is free to slide through the bearings, determine the magnitudes of the velocity and acceleration of the guide D on the rod as a function of . The guide follows the groove in the cam, and the groove is defined by the equations r = 0.25 ft and z = (0.25 cos ) ft.
