DC Biasing-BJTs - General Questions (4)

Directions to Solve

DC Biasing-BJTs - General Questions

25.

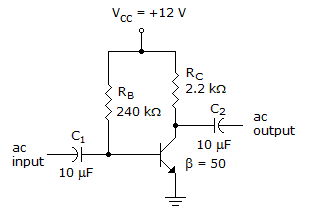

Determine the change in IC from 25ºC to 175ºC for the transistor defined in this table for fixed-bias with RB = 240 komega (6) and beta (2)1 = 100 due to the S(VBE) stability factor.

mcq04_03400
A. 145.8 mu (4)A
B. 145.8 nA
C. –145.8mu (4) A
D. –145.8 nA

Answer: Option A

Explanation:

No answer description available for this question

View Answer Discuss Workspace Report
26.

For what value of beta (2)1 does the transistor enter the saturation region?

mcq04_01000
A. 20
B. 50
C. 75
D. 116

Answer: Option E

Explanation:

No answer description available for this question

View Answer Discuss Workspace Report
27.

Calculate the value of VCEQ.

mcq04_01500
A. 8.78 V
B. 0 V
C. 7.86 V
D. 18 V

Answer: Option C

Explanation:

No answer description available for this question

View Answer Discuss Workspace Report
28.

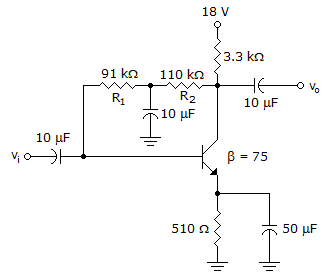

Calculate the voltage across the 91 komega (6) resistor.

mcq04_01400
A. 18 V
B. 9.22 V
C. 3.23 V
D. None of the above

Answer: Option C

Explanation:

No answer description available for this question

View Answer Discuss Workspace Report
29.

In a fixed-bias circuit, which one of the stability factors overrides the other factors?
A. S(ICO)
B. S(VBE)
C. S(beta (2)1)
D. Undefined

Answer: Option C

Explanation:

No answer description available for this question.

View Answer Discuss Workspace Report
30.

Determine the reading on the meter when VCC = 20 V, RC = 5 komega (6), and IC = 2 mA.

mcq04_01100
A. 10 V
B. –10 V
C. 0.7 V
D. 20 V

Answer: Option A

Explanation:

No answer description available for this question.

View Answer Discuss Workspace Report
31.

The cutoff region is defined by IB ________ 0 A.
A. >
B. <
C. lessthanorequalto
D. greaterthanorequalto (1)

Answer: Option C

Explanation:

No answer description available for this question

View Answer Discuss Workspace Report
32.

For the BJT to operate in the active (linear) region, the base-emitter junction must be ________-biased and the base-collector junction must be ________-biased.
A. forward, forward
B. forward, reverse
C. reverse, reverse
D. reverse, forward

Answer: Option B

Explanation:

No answer description available for this question.

View Answer Discuss Workspace Report
