Time Response of Reactive Circuits - General Questions

9.

In a repetitive-pulse RC integrator circuit, what would the steady-state voltage equal at the end of the fifth pulse? Assume a Vin of 20 V.

A. 1.46 V
B. 14.62 V
C. 20 V
D. 0 V

Answer: Option B

Explanation:

No answer description available for this question

View Answer Discuss Workspace Report

10.

An RL integrator and an RC differentiator can act as what types of filters, respectively?

A. low-pass, low-pass
B. low-pass, high-pass
C. high-pass, high-pass
D. high-pass, low-pass

Answer: Option B

Explanation:

No answer description available for this question.

View Answer Discuss Workspace Report

11.

If a periodic pulse waveform is applied to an RC differentiating circuit, which two conditions are possible?

A. tw greaterthanorequalto 5tau.gif or tw > 5tau
B. tw = tauor tw > 5tau
C. tw greaterthanorequaltotauf or tw < 5tau
D. tw greaterthanorequalto tau or tw < 5tau

Answer: Option D

Explanation:

No answer description available for this question

View Answer Discuss Workspace Report

12.

mcq15_1002

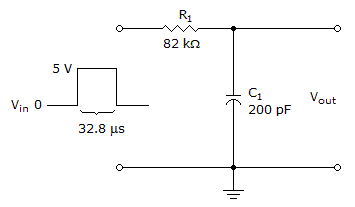

What voltage will the capacitor charge up to in the given circuit for the single input pulse shown?



A. 3.15 V
B. 4.3 V
C. 4.75 V
D. 4.9 V

Answer: Option B

Explanation:

No answer description available for this question.

View Answer Discuss Workspace Report
