Series-Parallel Circuits - General Questions (5)

Directions to Solve

Series-Parallel Circuits - General Questions

33.

mcq6_1001_1

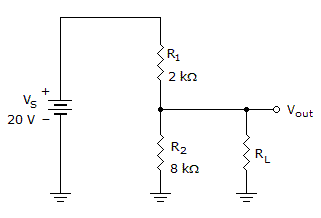

If the load in the given circuit is 120 komega (2)1 , what is the loaded output voltage?


A. 4.21 V
B. 15.79 V
C. 16 V
D. 19.67 V

Answer: Option B

Explanation:

No answer description available for this question

View Answer Discuss Workspace Report
34.

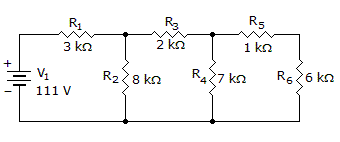

What is the power dissipated by R2, R4, and R6?

mcq5_1010_1 (1)
A. P2 = 417 mW, P4 = 193 mW, P6 = 166 mW
B. P2 = 407 mW, P4 = 183 mW, P6 = 156 mW
C. P2 = 397 mW, P4 = 173 mW, P6 = 146 mW
D. P2 = 387 mW, P4 = 163 mW, P6 = 136 mW

Answer: Option A

Explanation:

No answer description available for this question

View Answer Discuss Workspace Report
35.



What theorem replaces a complex network with an equivalent circuit containing a source voltage and a series resistance?
A. Multinetwork
B. Norton
C. Thevenin
D. Superposition

Answer: Option C

Explanation:

No answer description available for this question

View Answer Discuss Workspace Report
