RLC Circuits and Resonance - General Questions (4)

What is the current phase angle for a parallel RLC circuit when I_L = 15.3 A, I_C = 0.43 A, and I_R = 3.5 A?

What is the true power consumed in a 30 V series RLC circuit if Z = 20 ohms and R = 10 ohms?

In a series RLC circuit the current can be found using:

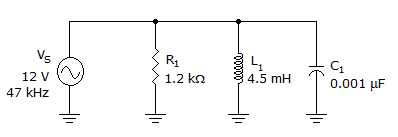

What is the impedance of the circuit in the given circuit?

What is the voltage across the capacitor in the given circuit?

At resonance, the term bandwidth includes all frequencies that allow what percentage of maximum current to flow?

When a full band of frequencies is allowed to pass through a filter circuit to the output, the resonant circuit is called a:

How much current will flow in a series RLC circuit when V_T = 100 V, X_L = 160 , X_C = 80 , and R = 60 ?
