Series Circuits - General Questions

Directions to Solve

Series Circuits - General Questions

mcq4_1005_1 (3)

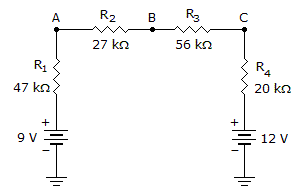

How much current flows in the circuit in the given circuit?

A.	20 A
B.	60 A
C.	80A
D.	140 A

Answer: Option A

Explanation:

No answer description available for this question.

With a 900 V source, voltage is divided across 3 series resistors of 300 V, 280 V, and:

A.	30 V
B.	270 V
C.	320 V
D.	900 V

Answer: Option C

Explanation:

No answer description available for this question

A series circuit schematic is recognized because all the components are connected:

A.	diagonally across the page
B.	in a uniform vertical manner
C.	end to end in a "string"
D.	horizontally across the page

Answer: Option C

Explanation:

No answer description available for this question.

If series resistors dissipate 16 mW, 107 mW, 146 mW, and 243 mW, what is the total power consumed by the circuit?

A.	128 mW
B.	269 mW
C.	512 mW
D.	1024 mW

Answer: Option C

Explanation:

No answer description available for this question

If two resistors have the same voltage drop in a series circuit, it means:

A.	they are connected in parallel
B.	they are of unequal value
C.	the voltage has doubled
D.	they are of equal value

Answer: Option D

Explanation:

No answer description available for this question.

What determines the total resistance in a series circuit?

A.	the largest resistor
B.	the sum of the resistors
C.	the largest resistor minus the smaller
D.	the smallest resistor

Answer: Option B

Explanation:

No answer description available for this question

When a battery is connected to a series circuit, it delivers current based only upon:

A.	primary/secondary difference
B.	total resistance
C.	the polarity connections
D.	average resistance

Answer: Option B

Explanation:

No answer description available for this question

Resistance in a series circuit will:

A.	control the voltage
B.	double the current
C.	halve the power
D.	oppose current

Answer: Option D

Explanation:

No answer description available for this question
